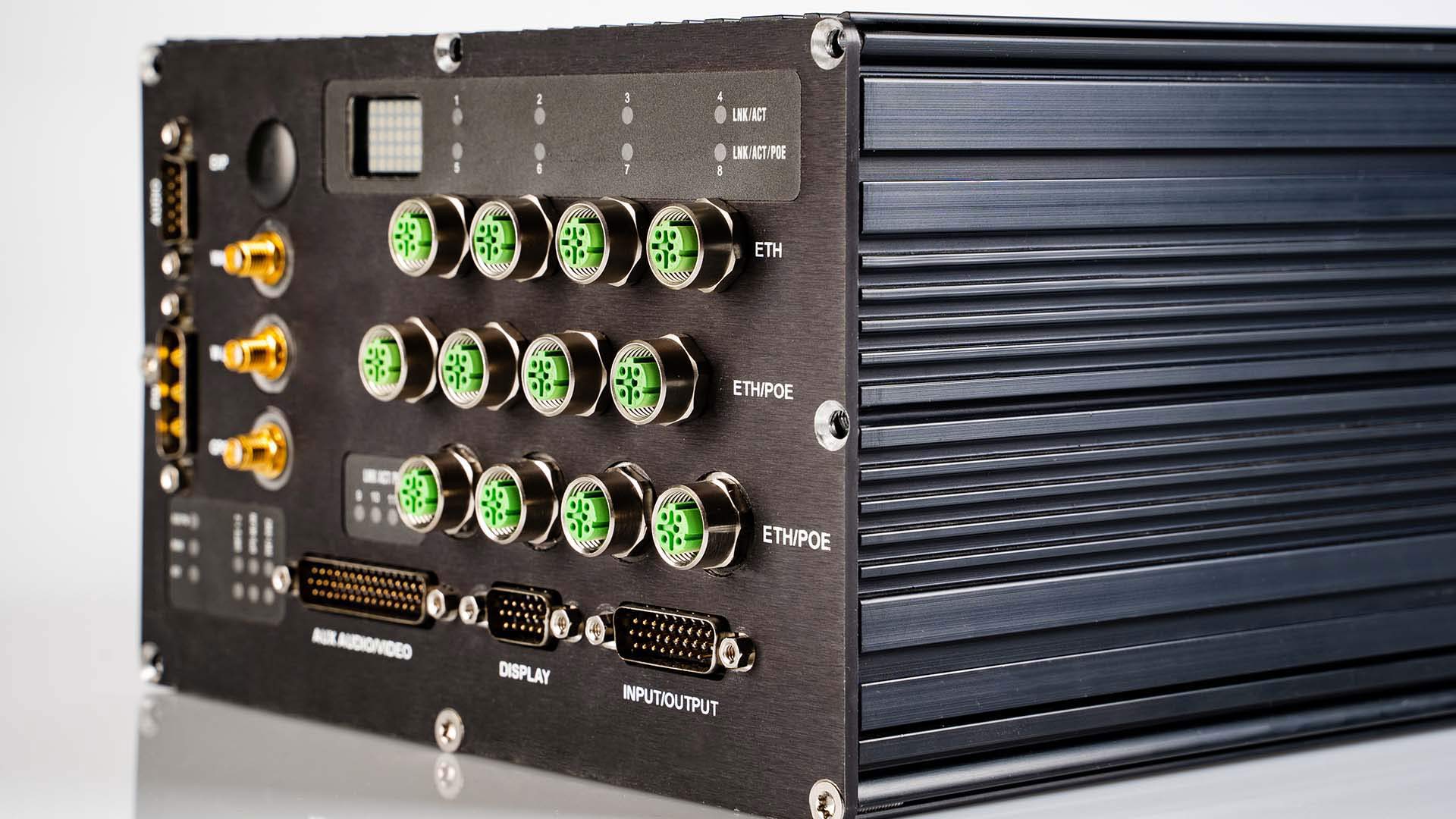

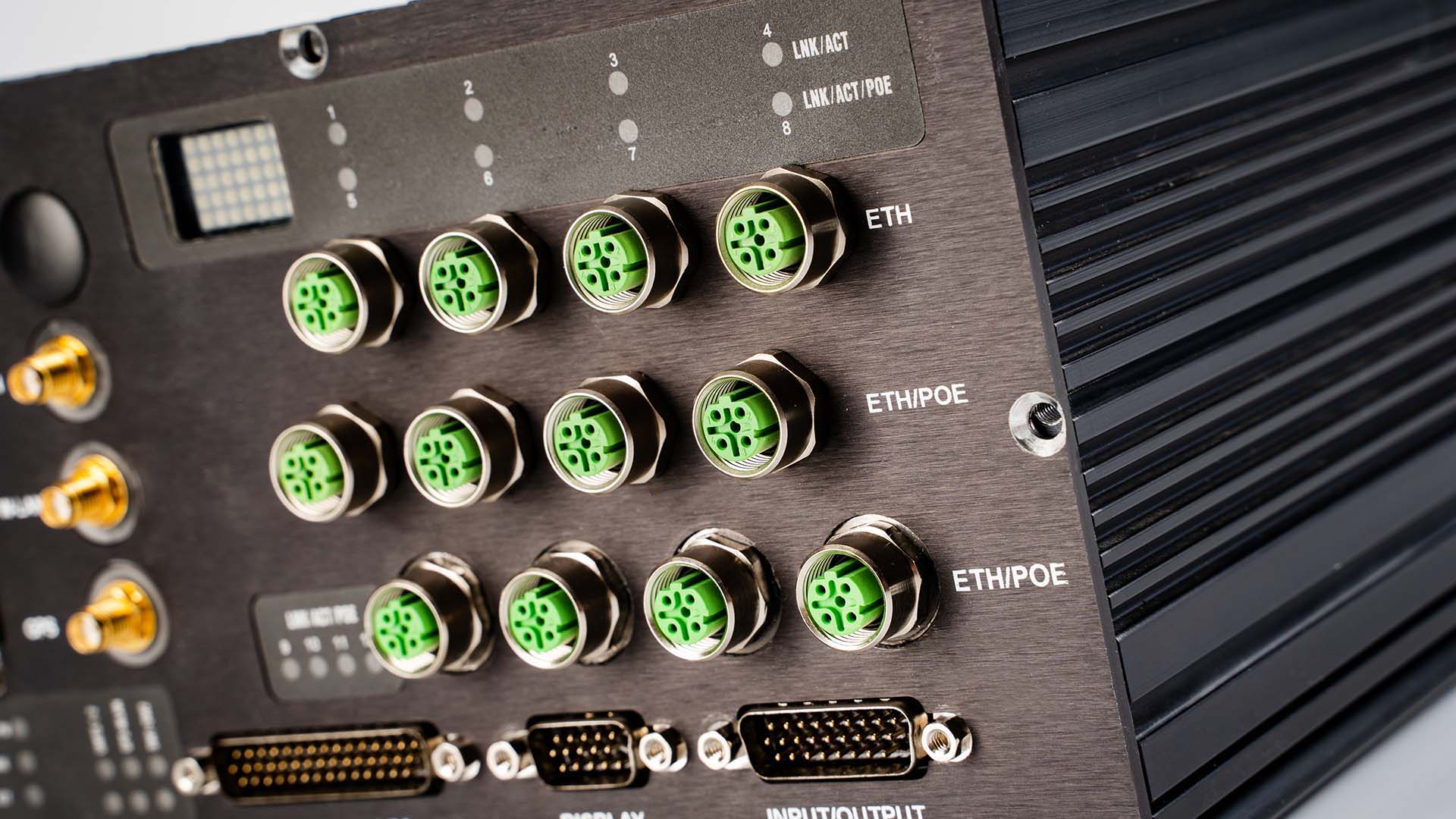

Video surveillance equipment
The functionality of this terminal is to feed all video and audio signals into it and then process and transmit them to the control facilities.
Product requirements
The starting requirements for product development were as follows:
- Achieve IP 65 sealing rating
- Pass vibration test
- Heat dissipation in the absence of openings and fans for recirculation
- Grounding of the mechanical case to protect the electronics
- A high level of security against intrusion
- Accessibility to the electronics for the assembly and maintenance phases
Solution created for application in the military-paramilitary field. Subsequently, the requirements were relaxed/declassified in order to reuse the project in the civil sector.
The product is designed to be placed on passenger vehicles (bus, subways), placed in a compartment above the driver’s head.
Accessibility

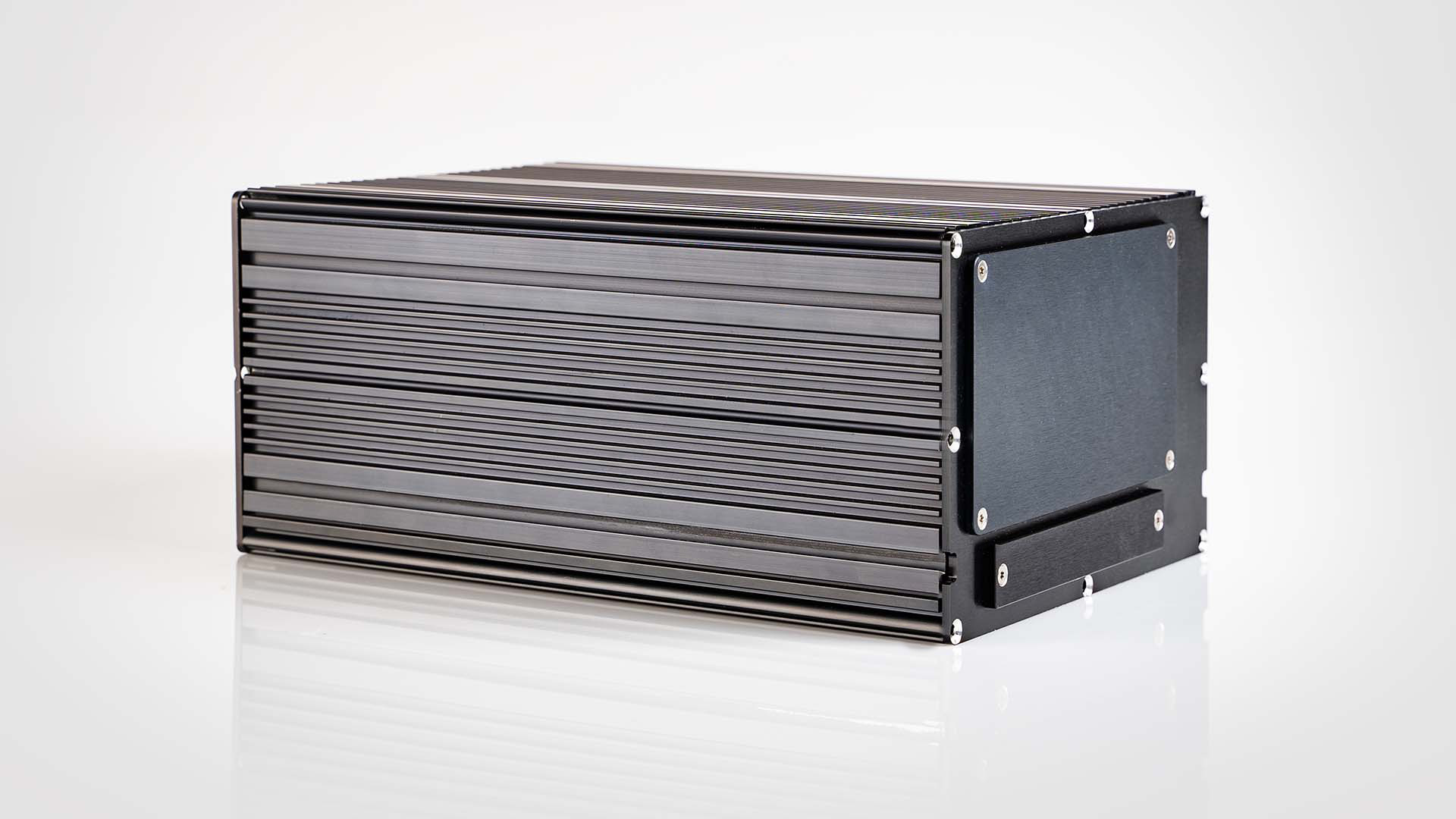

The case is designed to be easily accessible during assembly and subsequent maintenance thanks to the use of 2 structures made from a single extruded profile with an “L” shape that when joined together form a parallelepiped.
By removing the cover, the inside of the device is fully accessible to the operator.
Vibrations
Protection against external agents
Heat dissipation
Grounding
Security
Materials and technologies used
